Hager

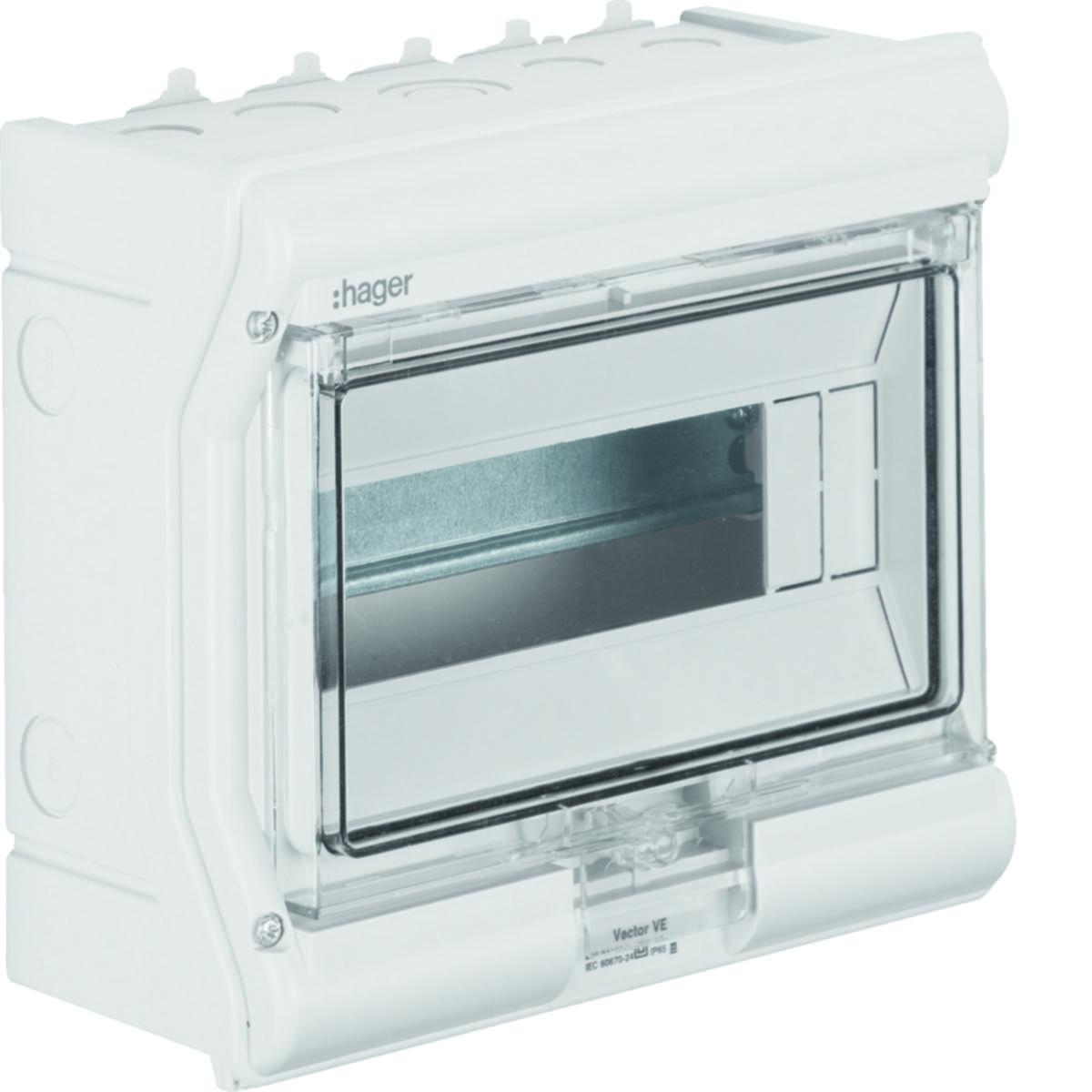

Kapsling Vector utomhus, Hager
KAPS VECTOR IP65 1X10M UTOMHUS VE110PN
Artikelnr:
2281698
för lagerstatus och pris
Made of white polycarbonate for outdoor installation.
Transparent, reversible door.
The Enclosure is equipped with knockout flanges.
Enclosures are made of insulating material, self-extinguishing, class II. IP65
Material: Polycarbonate has excellent properties against chemical attack
(salt solutions, acids, hydrocarbons, alcohol) and against UV radiation
Supplied without neutral and earthing equipment. Holder for an N and PE rail is included in enclosure.
White extra N/PE rail can be ordered öev holder
Neutral and earth rail can be ordered separately.
Transparent, reversible door.
The Enclosure is equipped with knockout flanges.
Enclosures are made of insulating material, self-extinguishing, class II. IP65
Material: Polycarbonate has excellent properties against chemical attack
(salt solutions, acids, hydrocarbons, alcohol) and against UV radiation
Supplied without neutral and earthing equipment. Holder for an N and PE rail is included in enclosure.
White extra N/PE rail can be ordered öev holder
Neutral and earth rail can be ordered separately.
- Artikelnr: 2281698
- Ean artikelnr: 3250616450332
- Materialklass XAÄA01
Teknisk data
- Övriga förp.storlekar: 1 ST/15 ST/120 ST
- Typ: VE110PN
- Monteringsmetod: Utanpåliggande montage
- Bredd i antal modulmellanrum: 10
- Antal rader: 1
- Antal moduler: 10
- Bredd: 237 mm
- Höjd: 210 mm
- Djup: 114 mm
- Färg: Grå
- Inbyggnadsdjup: 0 mm
- DIN-skena: Ja
- Kapslingsklass (IP): IP65
- RAL-nummer: 7035
- Material hus/kapsling/stomme: Plast
- Djup (innermått): 114 mm
- Med lås: Nej
- Utförande lock/kåpa: Sluten
- Transparent lock/dörr: Ja
- Typ av förslutning/stängning: Övrigt
- Med monteringsplatta: Nej
- Typ av betäckning: Dörr/Lucka
- EMC-version: Nej
- Utbyggnad möjlig: Ja
- REACH Datum: 2022-11-23
- REACH - Innehåller kandidatämnen: Bly
- REACH Informationsplikt: Ja
