Ledvance

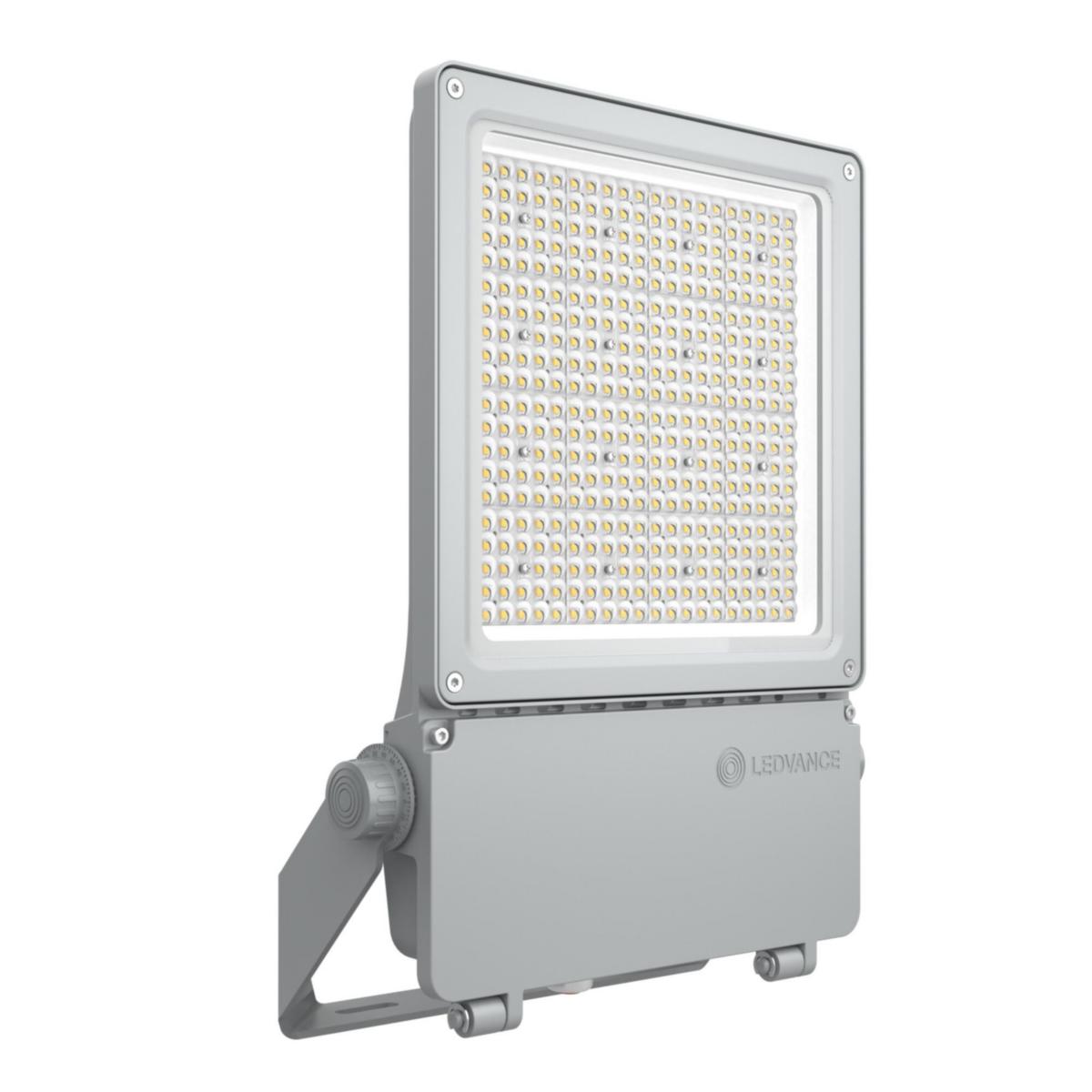

Strålkastare Flex 45x140° Asym
STRÅLK 180W 840 45X140° FLOODLIGHT FLEX
Artikelnr:
7770391
för lagerstatus och pris
LEDVANCE FLOODLIGHT FLEX ASYMMETRIC 45X140 are robust and durable floodlights with a very wide beam angle of 45°x140°, asymmetric light distribution for area lighting. Available as on/off or with DALI D4i for lighting control and smart city applications. High efficiency up to 161 lm/W. The on/off version has a multi-lumen function and can be easily adjusted between four different effects. Available in color temperatures of 3000K and 4000K as well as a version with 2200K. Corrosion resistance C5 based on 1500 hours of salt spray test. High surge protection up to 10 kV (L/N-PE), 6 kV (L-N). Long service life L70/B50 up to 120,000 hours (at 25 °C). Luminous flux up to 70,000 lm. Withstands ambient temperatures of -30° to 50°C. Three cable entries for flexible use and easy connection between luminaires. Daisy chain possible. Integrated ventilation to prevent condensation inside the luminaire. Easy angle adjustment by locking every 2.5°. Easy luminaire upgrade thanks to replaceable LED driver. Supplied with jumper.
- Artikelnr: 7770391
- Materialklass XAAA03
Teknisk data
- Max. systemeffekt: 180 W
- Nominellt ljusflöde (IEC 62722-2-1): 15700-27500 lm
- Färgtemperatur: 4000 K
- Ljusfördelning: Asymmetrisk
- Färg hus/kapsling/stomme: Aluminium
- Längd: 552 mm
- Bredd: 361 mm
- Höjd/Djup: 68 mm
- Märkspänning: 220-240 V
- Ljuskälla: LED (ej utbytbar)
- Material Kupa/Kåpa: Glas (transparent)
- Slagtålighet (IK): IK08
- Skyddsklass (IP) framsida: IP66
- Drivdon ingår: Ja
- Drivdon: Elektroniskt drivdon
- Antal poler: 3
- Armatur med begränsad yttemperatur "D" (EN 60598-2-24): Ja
- Dimningsbar: Nej
- Effektfaktor: 0.9
- Fotobiologisk säkerhet (EN 62471): RG1
- Färgbeständighet (McAdam ellipse): SDCM5
- Färgtolkningsindex (CRI/Ra): 80-89
- Glödtrådstest (IEC 60695-2-11): 850 °C - 30 s
- Justerbarhet: Svängbar
- Material hus/kapsling/stomme: Aluminium
- Ledararea: 1.5 mm²
- Ljusfärg: Vit
- Ljusfördelare/spridare: Fokuslins
- Ljusuttag: Direkt
- Ljusutbyte: 153-159 lm/W
- Lämplig för pelar-/golvmontering: Ja
- Lämplig för väggmontering: Ja
- Lämplig för utanpåliggande montage: Ja
- Med ljuskälla: Ja
- Nominell livslängd L70/B50 vid 25 °C: 120000 h
- Nominell omgivningstemperatur enligt IEC 62722-2-1: -30-50 °C
- Skyddsklass (IEC 61140): I
- Spänningstyp: AC
- Typ av kabeldragning: Lämplig för genomgående ledning
- Ytskydd: Pulverlackerad
- Justering ljusflöde: Lägen
- Max. antal armaturer per automatsäkring B16 (MCB): 7
- Max. antal armaturer per automatsäkring C16 (MCB): 12
- Med stöd för IFTTT: Ja
- Utbytbart drivdon: Ja
- Energieffektivitetsklass ljuskälla (EU 2019/2015): C
- Märkström: 798 mA
- Typ anslutning: Insticksklämma (snabbklämma)
- Innehåller produkt enligt 2019/2020/EU: Ja
- REACH Datum: 2024-06-01
- REACH - Innehåller kandidatämnen: Bly
- REACH Informationsplikt: Ja
