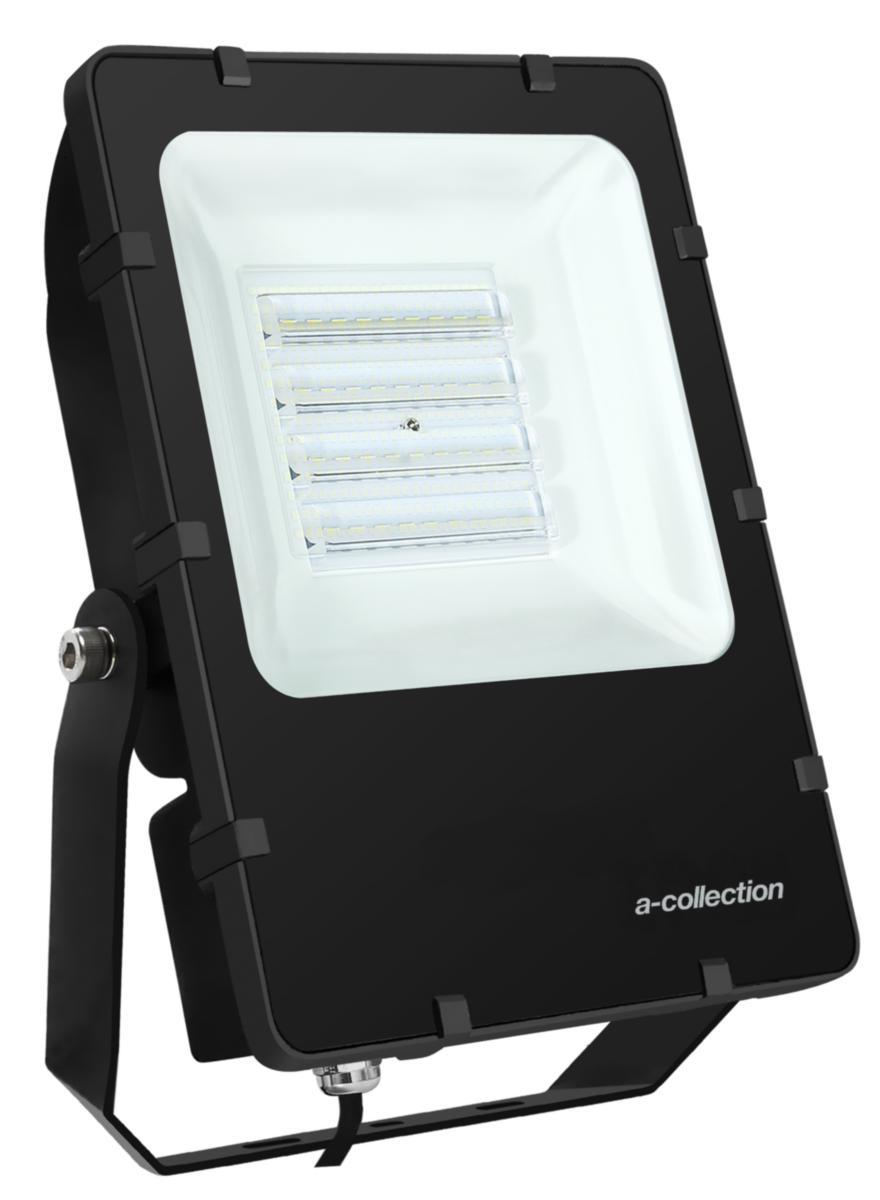

Floodlight intended for general indoor and outdoor lighting, for example loading docks, garage driveways and buildings. Unique design with a slim luminaire housing. Strong rust protection thanks to aluminum luminaire housing and bracket with stainless screws. Well suited for outdoor use. D-marked. Tempered front glass with UV-resistant silicone rubber gasket. Symmetrical luminaires up to 48W also suitable as work lighting for mounting on stands 7570106. Pre-assembled suspension bracket in aluminum for mounting on wall, ceiling or stand. The bracket can be removed if necessary to facilitate mounting. Connects with pre-assembled cable and supplied plug (symmetrical) or pre-assembled connection cable (asymmetrical).
Ambient temperature Celsius: Symmetrical: -30° to +50°. Asymmetric: -40° to +50°
Ambient temperature Celsius: Symmetrical: -30° to +50°. Asymmetric: -40° to +50°
- Artikelnr: 7764611
- Materialklass XAÄA01
Teknisk data
- Övriga förp.storlekar: 1 ST/4 ST
- Energimärkning: D
- Max. systemeffekt: 72 W
- Nominellt ljusflöde (IEC 62722-2-1): 9800 lm
- Färgtemperatur: 4000 K
- Ljuskälla: LED (ej utbytbar)
- Slagtålighet (IK): IK08
- Med ljuskälla: Ja
- Kapslingsklass (IP): IP66
- Höjd: 370 mm
- Bredd: 265 mm
- Djup: 75 mm
- Märkspänning: 230 V
- Färgtolkningsindex (CRI/Ra): 80-89
- Nominell livslängd L70/B50 vid 25 °C: 50000 h
